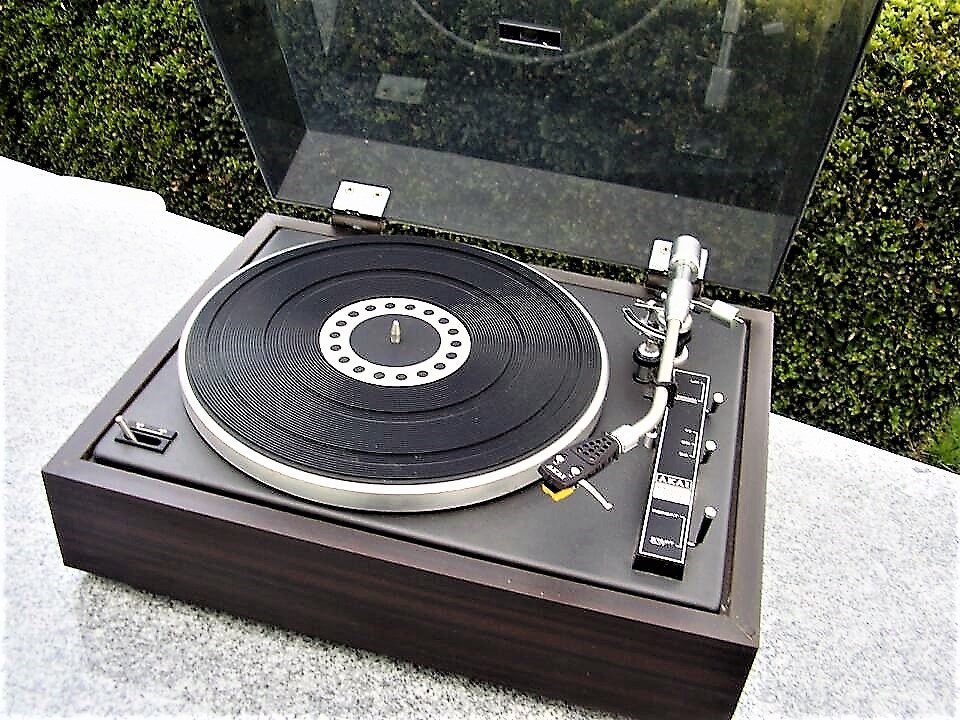

AKAI AP004 Turntable

Handsome earlier model from a well respected series. Full Auto operation starts and returns smoothly using a separate motor to move the arm. End trigger is by non invasive magnetic reed switch. Has needle drop mute for completely silent start. Serviced with new belt and stylus. Dead on speed and completely noise free.

Full automatic turntable

Turntable The product made from 300phi aluminum alloy die-casting
Drive system Belt drive
Motor For a turntable drive: 4 pole synchronous motor
For a tone-arm drive: Geared motor
Automatic mechanism full — automatic
(Automatic reading out, automatic reading in, an auto cut, auto-repeat)
Nominal speed 33 A part for 1/3 and 45 rotation/
Wow and flutter Below 0.07%Wrms
S/N ratio 50dB or more
Weight 1.1kg

Form Static balance and a needle pressure Direct-reading type pipe arm
inside force canceller
Lateral weight
4 pole plug-in head type
Effective length 220mm
Needle pressure adjustable range 0g-3g
Application cartridge tare 4g-9.5g
At the time of sub wait use: 9.5g – 16g
Arm lifter Oil dumping type
Overhang 15mm
Weight (shell) 8.7g

System MM type
Frequency response 20Hz – 20kHz
Separation 25dB or more (1kHz)
Output voltage 5mV (1kHz, 50 mm/s)
Proper needle pressure 1.5g
Compliance 30×10 to 6 cm/dyne
Load resistance 47kohm-100kohm
Tare 6g
Channel balance 2dB

Power supply voltage AC240V, 50Hz/60Hz
Power consumption 11W
Dimensions Width 503x height 185x depth of 410mm
Weight 9kg
