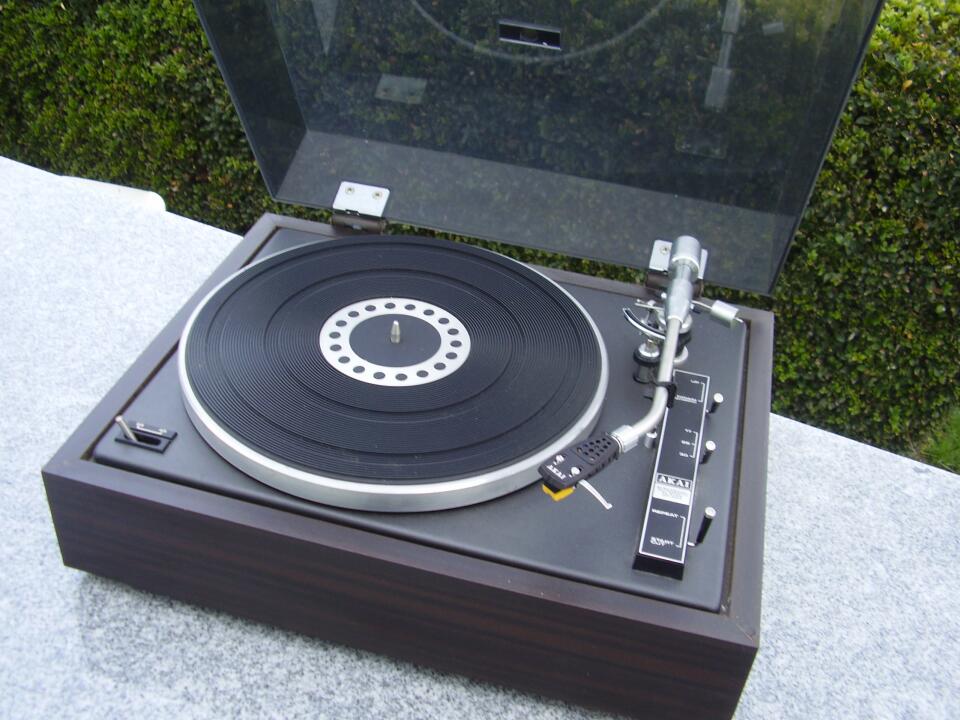

Akai AP004 Belt Drive Turntable

A belt drive turntable from the 1970s of outstanding quality
Fitted with a new belt
Here is everything you will ever need to know about the AP004  *SOLD*

Rating of a mode
Form Full automatic turntable
<Turntable part>
Turntable The product made from 300phi aluminum alloy die-casting
Drive system Belt drive
Motor For a turntable drive: 4 pole synchronous motor
For a tone-arm drive: Geared motor
Automatic mechanism full — automatic
(Automatic reading out, automatic reading in, an auto cut, auto-repeat)
Nominal speed 33 A part for 1/3 and 45 rotation/
Wow and flutter Below 0.07%Wrms
S/N ratio 50dB or more
Weight 1.1kg
<Tone arm>
Form Static balance and a needle pressure Direct-reading type pipe arm
inside force canceller
Lateral weight
4 pole plug-in head type
Effective length 220mm
Needle pressure adjustable range 0g-3g
Application cartridge tare 4g-9.5g
At the time of sub wait use: 9.5g – 16g
Arm lifter Oil dumping type
Overhang 15mm
Weight (shell) 8.7g
<Cartridge part>
System MM type (SHURE M91ED)
Frequency response 20Hz – 20kHz
Separation 25dB or more (1kHz)
Output voltage 5mV (1kHz, 50 mm/s)
Proper needle pressure 1.5g
Compliance 30×10 to 6 cm/dyne
Load resistance 47kohm-100kohm
Tare 6g
Channel balance 2dB
<Synthesis>
Power supply voltage AC100V, 50Hz/60Hz
Power consumption 11W
Dimensions Width 503x height 185x depth of 410mm
Weight 9kg
Attachment Sub waitx1
Capstan x1
PU cord x1
Adapter x1 for 45 rotation boards
Small driver x1
Oil x1
