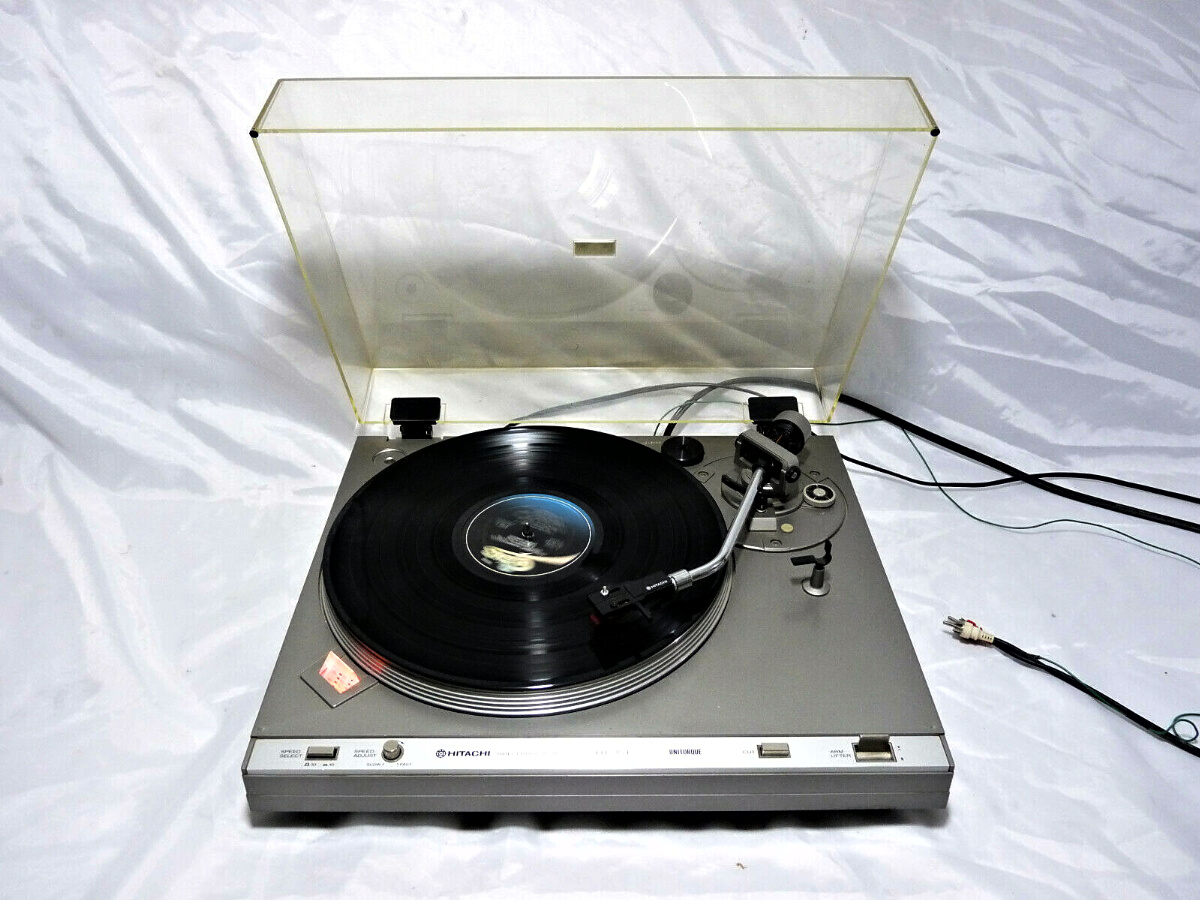

Hitachi HT – 354 Direct Drive

Features of the Hitachi HT-354 include auto-return, auto-cut, anti-skating, tracking force direct reading balance weight, stroboscope and neon lamp, and viscous damped cueing.  *SOLD*


Type: 2-speed direct drive system

Platter: 310mm aluminium alloy die-cast

Motor: brushless dc servo direct drive motor

Speeds: 33 and 45rpm

Speed change: electronic

Signal to noise ratio: 75dB

Wow and flutter: 0.03% wrms

Arm effective length: 220mm

Overhang: 15mm

Tracking force range: 0 to 3g

Cartridge weight range: 4 to 10g

Cartridge: MT-30 dual magnet type

Frequency range: 10 to 25,000Hz

Output voltage: 3mV

Channel difference: 1dB

Channel separation: 20dB

Tracking force: 1.5 to 2.5g

Stylus tip: DS-ST30 diamond

Dimensions: 435 x 375 x 128mm

Weight: 5.5kg
