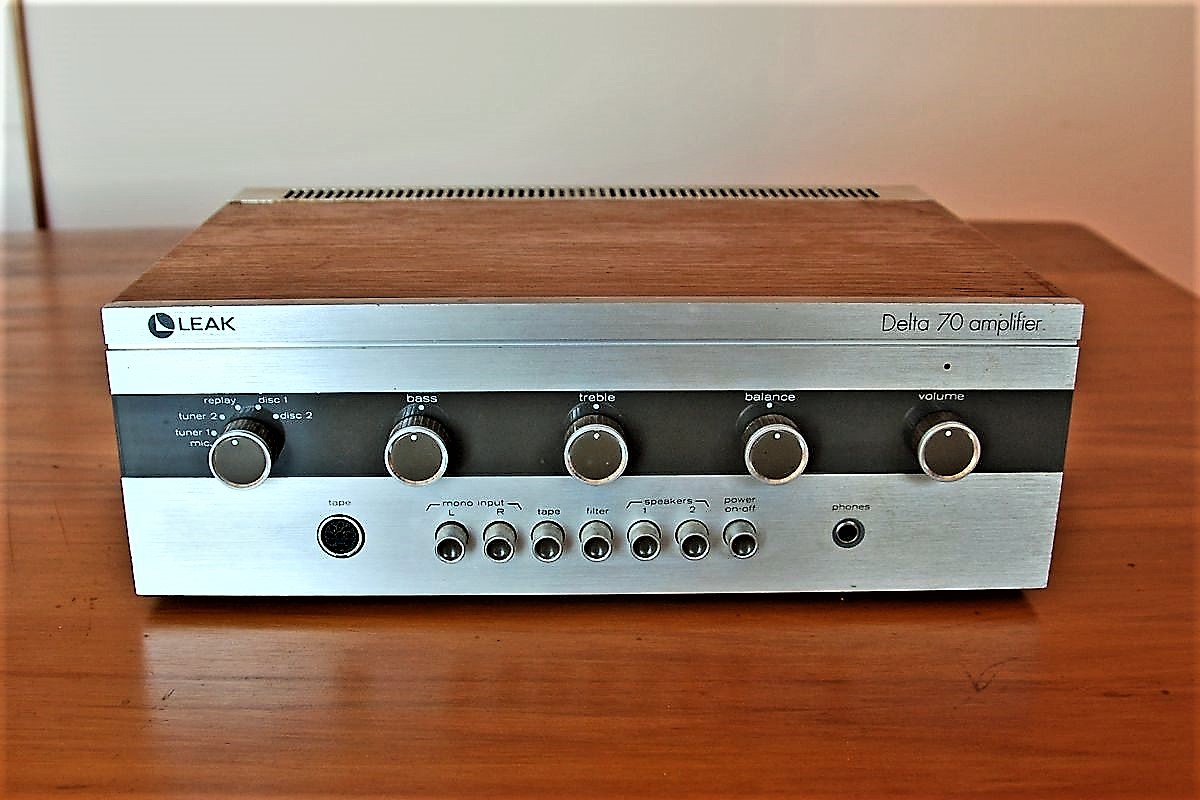

Regarded as the finest solid state amplifier manufactured by Leak *SOLD TO AUSTRALIA*
This is the most original example I have ever seen . In excellent condition
Specification
Rated Power Output:
40 + 40 watts into 4 ohms,
35 + 35 watts into 8 ohms,
28 + 28 watts into 15 ohms.
Music Power Output (IHF):
100 watts into 4 ohm loudspeakers,
90 watts into 8 ohm loudspeakers,
60 watts into 15 ohm loudspeakers.
Total Harmonic Distortion: 0-1% at ALL power levels up to 25 watts at 1 kHz each channel into 8 ohm loudspeakers.
Total Intermodulation Distortion: Input – 70 Hz anf 7 kHz in ratio of 4:1, Less than 0-5% for ALL power levels up to 35 watts into 8 ohms
Hum and Noise: 66 dB below 30 watts into 8 ohm load on Tuner and Replay and 56 dB below 30 watts on other inputs.
Cross Talk: between L and R channels, -50 dB up to 1kHz and -30 dB at 10 kHz.
Input Sensitivities:
Disc 1 (RIAA Characteristic) 2 mV at 1 kHz Input Impedance 47 kohm.
Disc 2 (RIAA Characteristic) 10 mV or 30 mV at 1 kHz Input Impedance 33 kohm, 100 kohm.

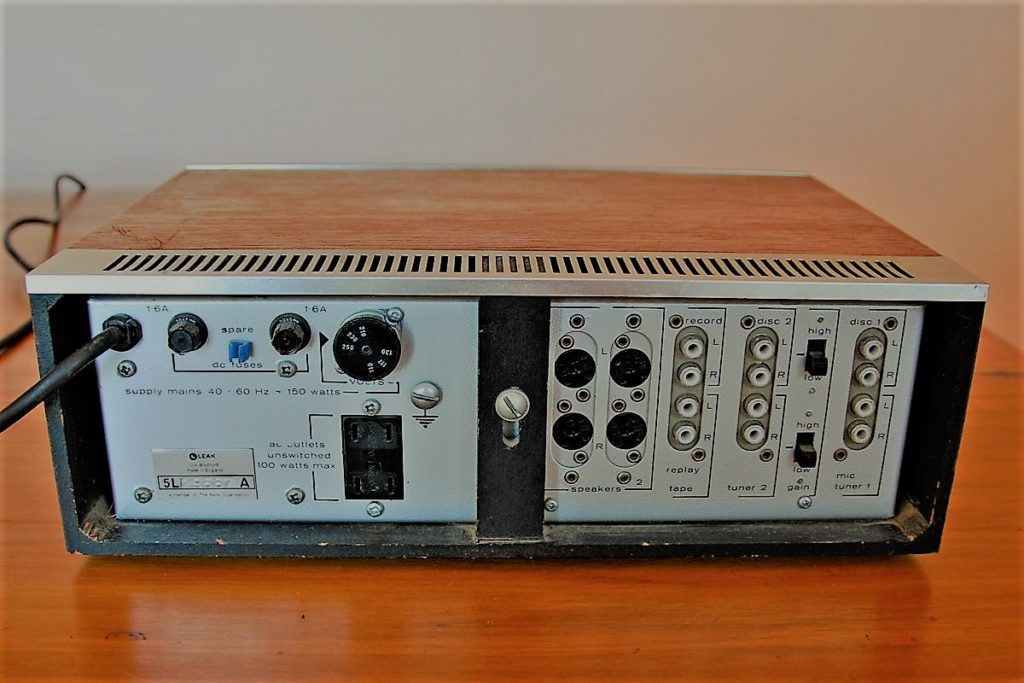

(Selected by switched input attenuator marked HI and LO on rear panel).
Damping Factor:
40 measured at 1 kHz for 15 ohm loudspeakers.
20 measured at 1 kHz for 8 ohm loudspeakers.
Tuner 1 Mic
25 mV or 2 mV
47 kohm, 47 kohm
Tuner 2:
60 mV or 250 mV
50 kohm, 50 kohm
(Selected by switched input attenuator marked HI and LO on rear panel).
Replay:
400 mV
47 kohm
Frequency Response: 30 Hz to 20,000 Hz (±1 dB)
Tone Control Range: 50 Hz to 14,000 Hz (±16 dB)
Filter: 12 dB per octave rolloff above 6 kHz
Dimensions: 344 x 118 x 238 mm
