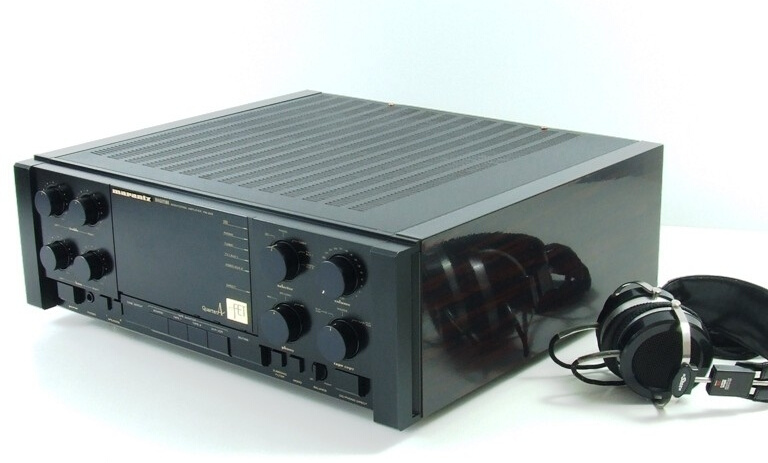

Marantz PM84 MKII

Specifications Marantz 84 mkII amplifier

Output performance
Power output 8 ohm (FTC): 100 Watt
Power output 4 ohm (FTC): 125 Watt
Power output 8 ohm (DIN): 140 Watt
Power output 4 ohm (DIN): 190 Watt
Power output 8 ohm (IHF): 180 Watt
Power output 4 ohm (IHF): 300 Watt
Power output 2 ohm (IHF): 305 Watt
Total harmonic distorion (8ohm): 0.015%
Intermodulation: 0.015%
Damping Factor: 100
pre-amplifier output: –

Inputs phono magn
IEC/RIAA characteristics: ±0.25dB
Signal to Noise Ratio: 90dB
Sensitivity/Impedance: 2.5mV/47kOhms

Inputs phono dyn.
Sensitivity/Impedance: 25µV/100Ohms

Inputs CD/AUX/TV/Video
Sensitivity/Impedance: 150mV/30kOhms
Signal to Noise Ratio: 98dB
Frequency response: 15Hz-70kHz ±1dB

Dimensions (wxhxd): 416x146x410mm
Netto weight: 18kg

Version N und T: 220V/240V
Version E: 110V-240V
