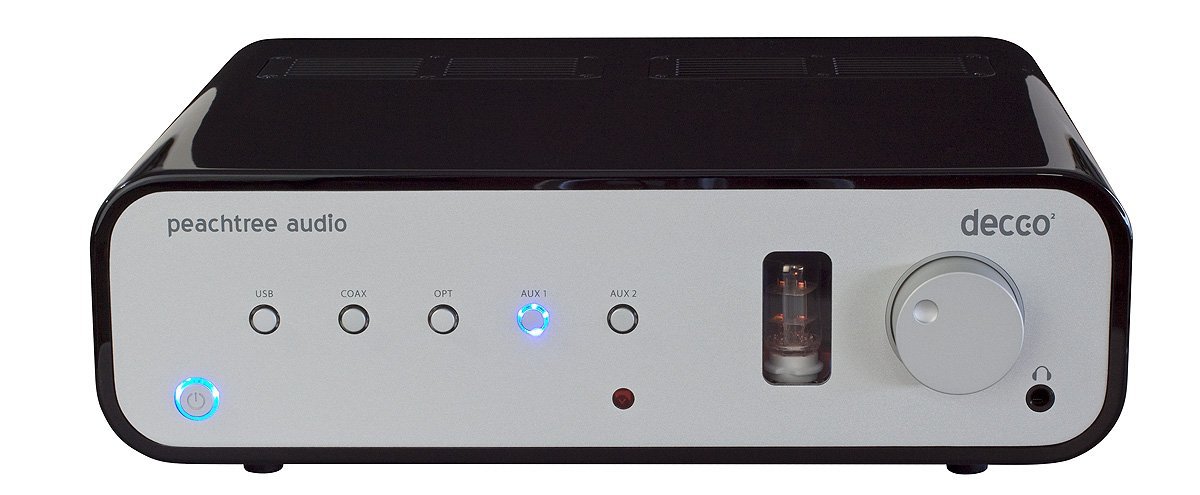

Peachtree Decco 2 Integrated amplifier DAC

Decco2 Specifications *SOLD*

40 watts per channel <1% distortion into 6 ohms Stereo MOSFET amp modules Preamp Class A Preamp output stage <30 Ohms output impedance Hybrid tube design using triode (Stereo 6N1P) 6.5V output @ 2.0V input Polypropylene caps in the signal path 2 Aux input 3 Digital inputs (all transformer coupled) USB, Toslink (optical), Coax Headphone Amp Class A output with 6N1P tube in the circuit Suitable for all electro-dynamic headphones Frequency response: DC ~ 100 kHz +/- 0.1dB Voltage gain: 10dB Maximum output voltage: 7Vrms Output impedance: <30ohms Maximum output power: 100mW into 8 Ohm / 300mW into 150 Ohm / 150mW into 300 Ohm Digital to Analog Converter (DAC) 4 digital inputs: 1 iPod, 1 USB, 1 Coax, 1 Toslink (optical) ESS 9006 Sabre DAC w/patented jitter reduction circuit 24/96 upsampling 11 regulated power supplies Class A output stage (for use as an external DAC) Transformer coupled digital Inputs for ground isolation Galvanically isolated USB stage. >118db S/N
<1 picosecond jitter measured at the Master Clock (Super Clock) AC 115v/230v switchable from back panel Size 5" H x 14 ¾" W x 14" D (including volume knob and speaker terminals) Finish Black Gloss Weight 25 pounds
