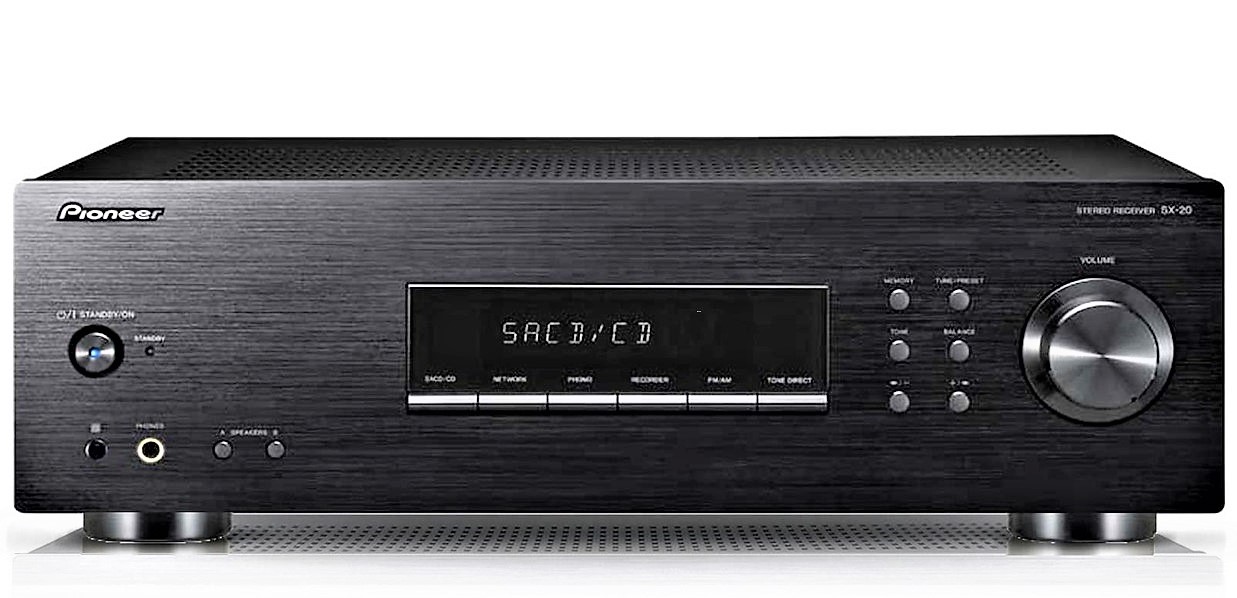

*SOLD** The Pioneer SX-20  k  stereo receiver certainly packs a lot in. Starting with it’s high power output of 100 watts per channel into 8 ohms there’s plenty of drive capability to suit most speakers. It has Direct Energy Design; the highly developed compact circuit with short signal paths and the best possible protection from disruptive sound effects is designed for speedy response behavior (to make the sound more dynamic) and a clear stereoscopic picture with a fresh sound.

In keeping with the resurgence of record playing the Pioneer has an inbuilt phono preamplifier which stops the need for an outboard phono preamplifier. It has 3 other inputs for connecting a network player, CD player or other music source. The SX-20 comes with an inbuilt AM/FM tuner. It also has the facility of being able to run 2 pairs of speakers which are switchable to one pair at a time or both at once.

All in all the Pioneer SX20 stereo receiver ticks a lot of boxes

  • Analogue Discrete 2ch Amplifier
  • 100 W + 100 W High Power Output
  • FM (RDS)/AM Tuner with 30 Presets
  • Phono Input (MM)
  • Speaker A/B Selector
  • FL Display
  • Aluminum Front Panel
  • Sleep Timer
  • Auto Power Down
  • Power Output (Stereo): 100 W + 100 W (20 Hz-20 kHz, THD 0.2 %, 8 ohms)
  • THD: 0.02 % (Rated Output -3 dB, 8 ohms, 1 kHz)
  • S/N Ratio: Phono (MM): 80 dB. Line (SACD/CD, NETWORK, RECORDER): 100 dB
  • Tone Controls: Bass (100 Hz)/Treble (10 kHz): ±14 dB
  • Frequency Response: Phono: 20 Hz-20 kHz, ±0.5 dB (RIAA Eqalisation) MM Line (SACD/CD, NETWORK, RECORDER) : 5 Hz-100 kHz, 0 dB/-3 dB
  • Analogue Audio Input (SACD/CD, NETWORK, RECORDER, PHONO (MM))
  • Audio Output (RECORDER)
  • FM/AM Tuner Antenna
  • Large Speaker A/B Terminals. Speaker Impedance: 4-16 ohms (A or B), 8-16 ohms (A+B), 4-16 ohms (Bi-Wire)
  • Headphones Terminal
  • AC Inlet
  • Dimensions (W x H x D): 435 x 142.5 x 364 mm.
  • Weight: 8.3 kg
