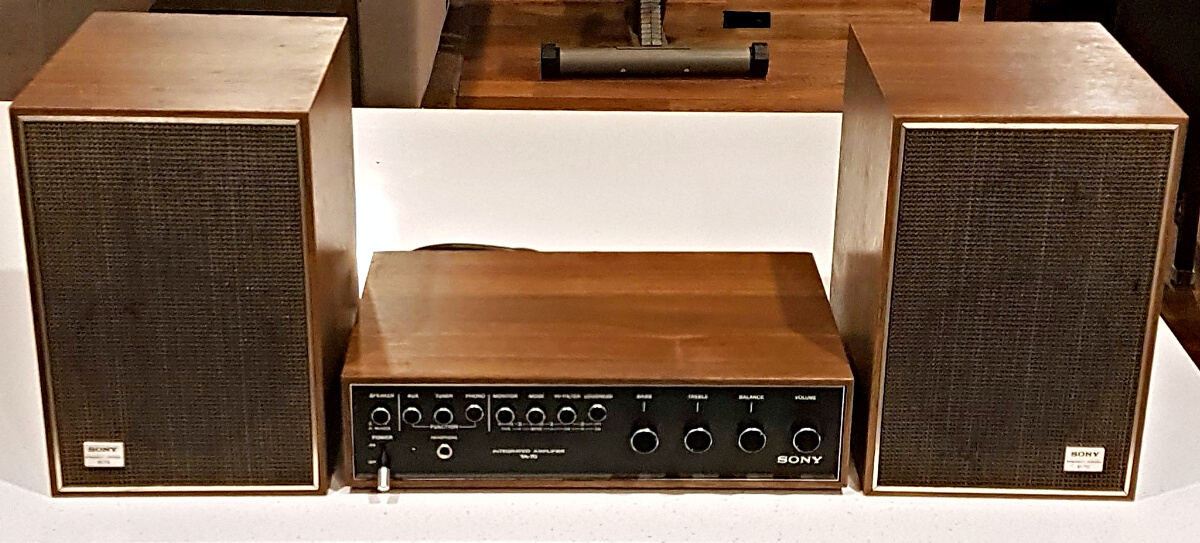

SONY TA-70 Rare vintage restored amplifier with PHONO input + speakers

A Retro gem  *SOLD*


Integrated Amplifier, rated output 8 watts per channel into 8 ohms at 1 kHz, dynamic output 30 watts into 8 ohms. Frequency response: 30Hz to 50kHz, total harmonic distortion: 2%.

Sockets for phono, tuner and aux, tape and headphones. Switch for MM or ceramic cartridge. Connections for four loudspeakers.

Dynamic power output: 30watts, both channels operating, 8 Ohms
Harmonic distortion: less than 2.0% at 1 kHz at rated output
Frequency response: 30Hz-50kHz (+/- 3dB)
Signal-to-noise ratio: greater than 60dB Phono, greater than 65dB REC/PB
Tone controls: bass +/- 10dB at 100Hz, treble +/-10dB at 10kHz
Loudness control: 8dB up at 100Hz, 6dB up at 10kHz
High filter: 3dB/oct above 5kHz
Power consumption: 70W
Dimensions (WHD): 330 x 89 x 246 mm

Year of manufacture: 1972
