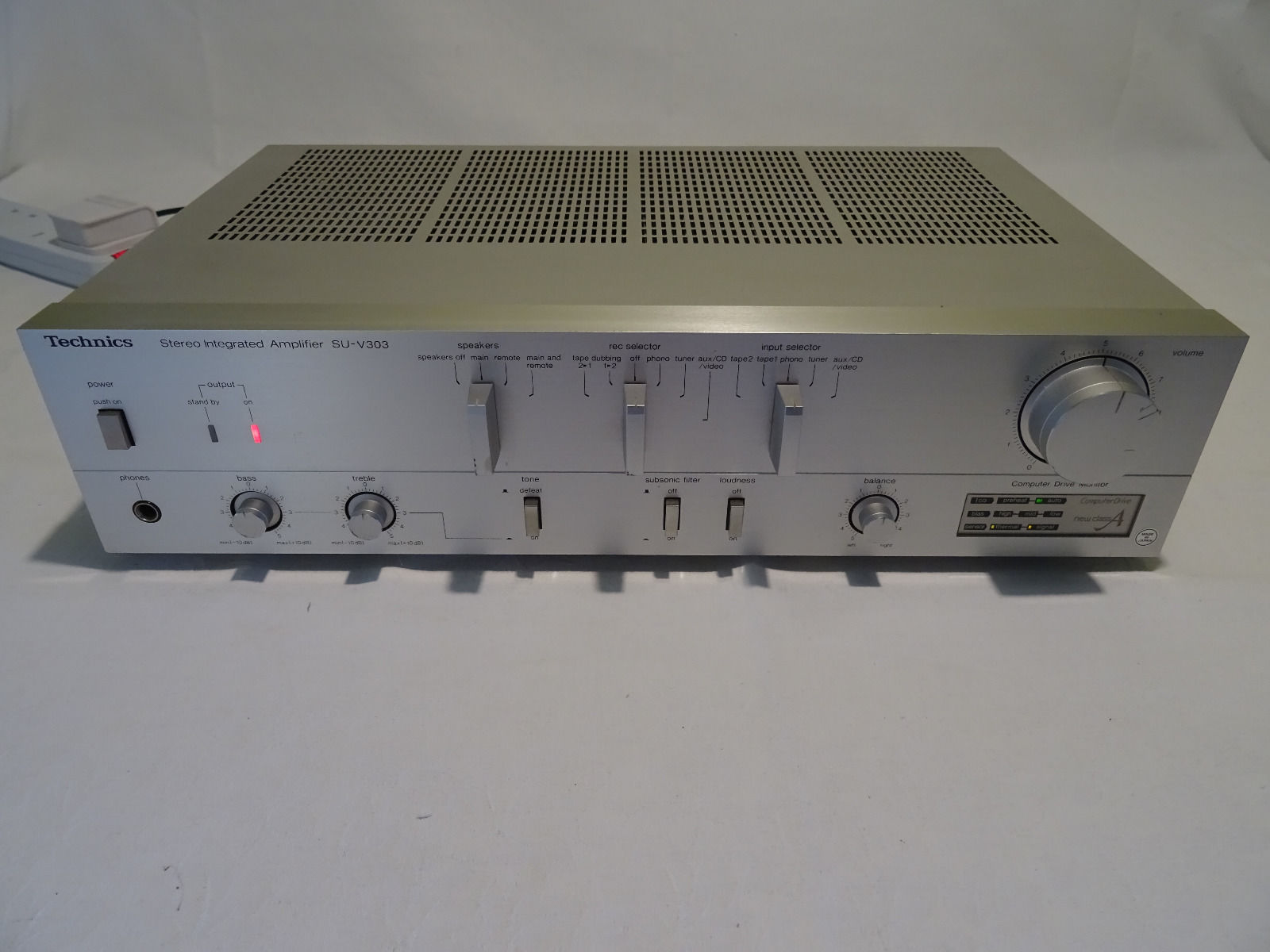

Technics SU-V303 Amplifier

*SOLD* Technics SU-V303 Integrated amplifier .One of the the best phono stages you will ever hear in an integrated amp of this price.

Technics SU-V303

Computer Drive New Class A (Technics 1984 HiFi)

1. General
System: Integrated Transistor Amplifier (New Class A)
Colour: 1=Silver, 2=Black: 1,2
Power consumption: 340 W @ 120/240 V
Pre Amplifier
Inputs: Phono MM; Tuner; Tape I+II; Aux/CD/Video
Quadro: no
Inp. Sensitivity High Level: 150 mV
Inp. Impedance High Level: 22 kΩ
Frequency Response High Level: 5-140,000 (-3 dB) HZ
Signal/Noise High Level: 102 (IHF A) db
Inp. Sensitivity Phono MM: 2.5 mV
Inp. Impedance Phono MM: 47 kΩ
Frequency Response Phono MM: RIAA (±0.8 dB)
Signal/Noise Phono MM: 82 (IHF A) db
Outputs: 2 REC OUT
Tone Controls: Bass; Treble
Frequencies: ±10 dB/50 Hz; ±10 dB/20 kHz
Filters: SUBSONIC (-12 dB/oct./30 Hz)
Loudness: 1
Power Amplifier
Speaker Outputs: 2 x 2 Speakers; Phones
Continuous Power 4Ω: 45 + 45 Watts
Continuous power 8Ω: 40 + 40 Watts
Harmonic Distortion: 0.005 % at rated output
2. Physical
Dimensions in Inches: 16.93 x 4.29 x 11.42 (w) x (h) x (d)
Dimensions in mm: 430 x 109 x 290 (w) x (h) x (d)
Weight in lbs: 14.77 lbs
Weight in Kg: 6.7 Kg
