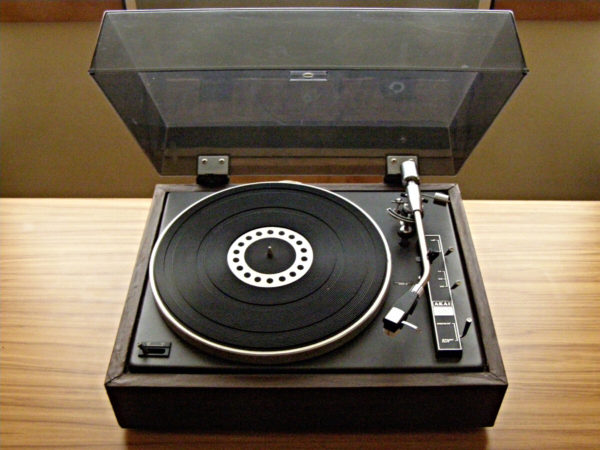

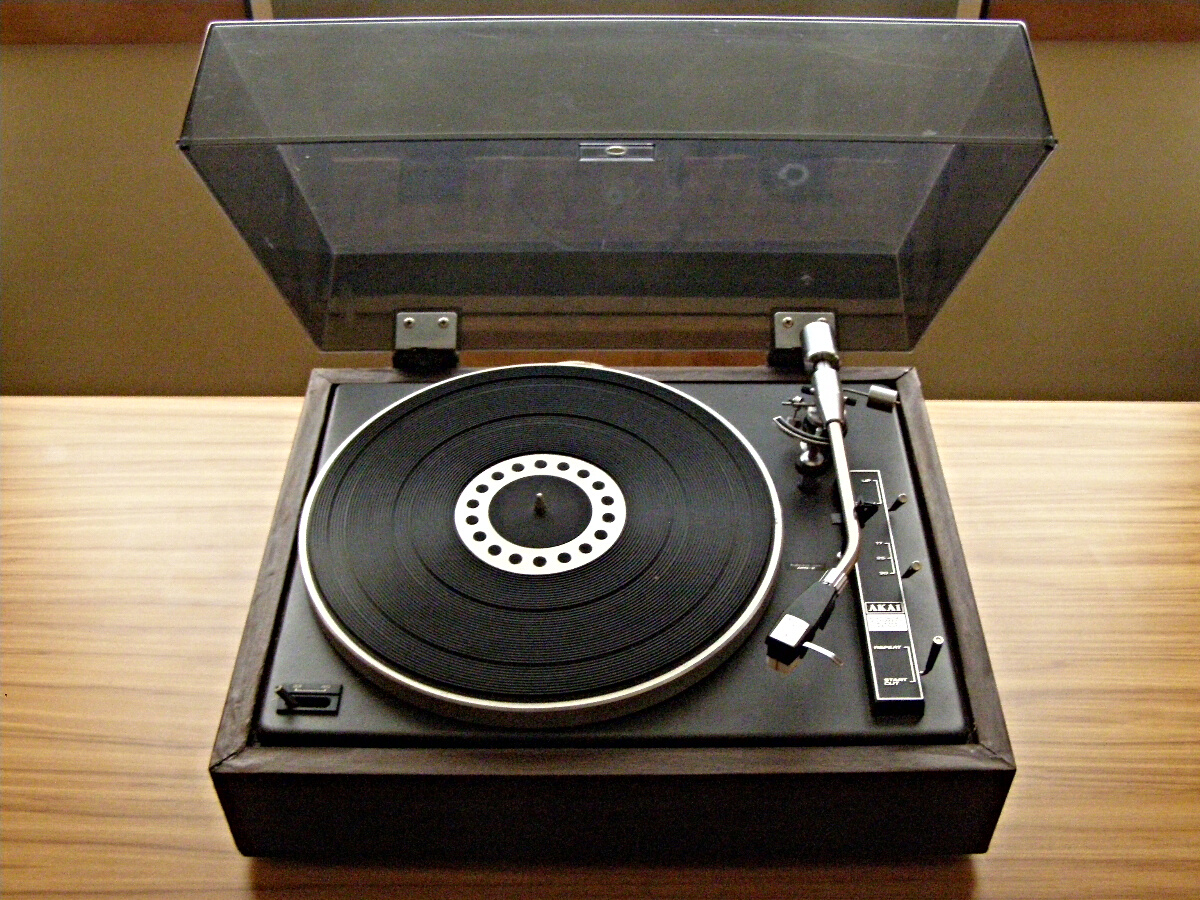

AKAI AP 004 Turntable





An outstanding performer from the golden age of Hi Fi


Full automatic turntable
<Turntable part>
Turntable The product made from 300phi aluminum alloy die-casting
Drive system Belt drive
Motor For a turntable drive: 4 pole synchronous motor
For a tone-arm drive: Geared motor
Automatic mechanism full — automatic
(Automatic reading out, automatic reading in, an auto cut, auto-repeat)
Nominal speed 33 A part for 1/3 and 45 rotation/
Wow and flutter Below 0.07%Wrms
S/N ratio 50dB or more
Weight 1.1kg
<Tone arm>
Form Static balance and a needle pressure Direct-reading type pipe arm
inside force canceller
Lateral weight
4 pole plug-in head type
Effective length 220mm
Needle pressure adjustable range 0g-3g
Application cartridge tare 4g-9.5g
At the time of sub wait use: 9.5g – 16g
Arm lifter Oil dumping type
Overhang 15mm
Weight (shell) 8.7g
<Cartridge part>
System MM type
Frequency response 20Hz – 20kHz
Separation 25dB or more (1kHz)
Output voltage 5mV (1kHz, 50 mm/s)
Proper needle pressure 1.5g
Compliance 30×10 to 6 cm/dyne
Load resistance 47kohm-100kohm
Tare 6g
Channel balance 2dB
Power supply voltage AC240V, 50Hz/60Hz
Power consumption 11W
Dimensions Width 503x height 185x depth of 410mm
Weight 9kg
