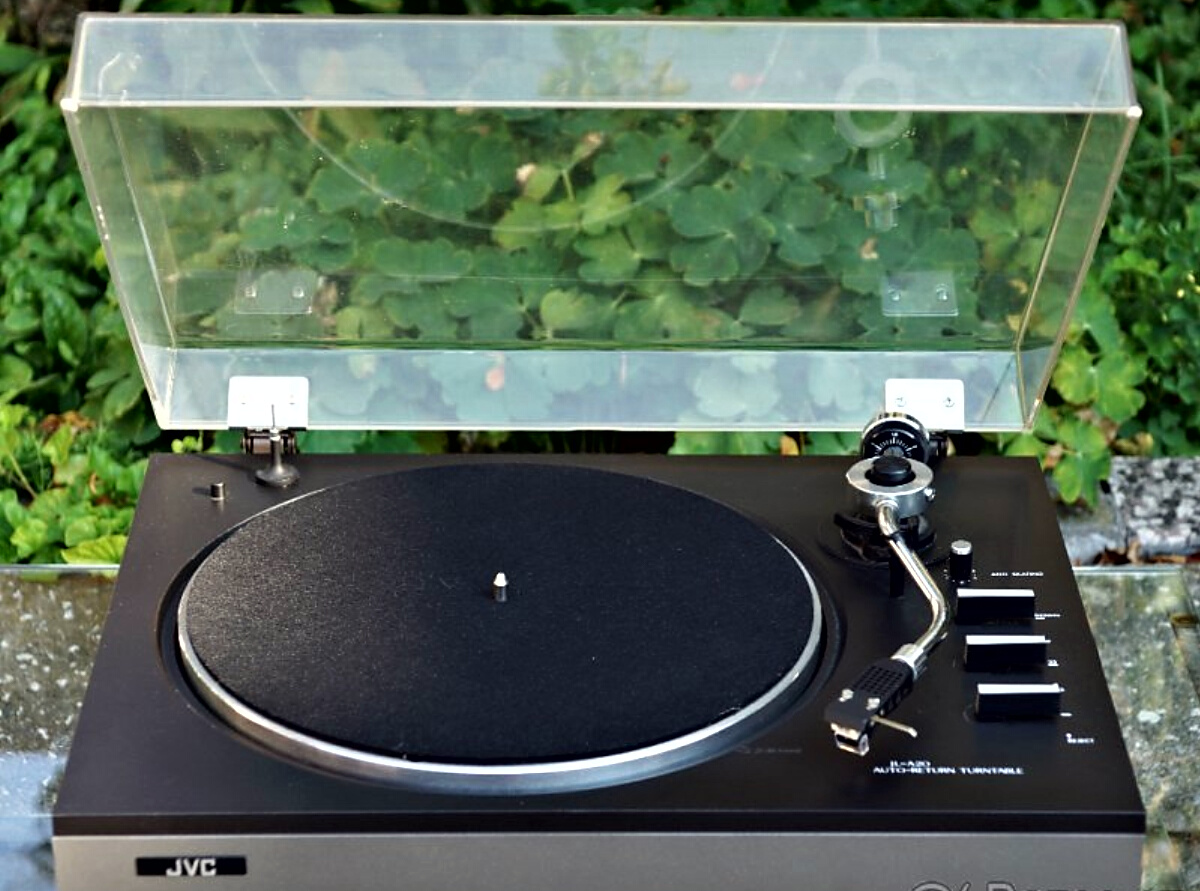

This dependable auto-return belt-drive turntable offers the multiple benefits of precision and convenience. Its uncomplicated mechanism permits the stylus to track freely, as on any first-class manual, until the stylus enters the lead-out grooves to the record, or until you trigger the Reject control. All controls are grouped at the right side to enhance ease of operation. *SOLD*
Specifications
Motor Type: 4-pole synchronous
Drive System: Belt-drive
Speeds; 33 ⅓ and 45 rpm
Speed Change: mechanical
Wow and Flutter:
Less than 0,06% (WRMS);
Less than 0,08% (DIN)
Signal-to-Noise Ratio:
below than 53 dB (IEC-B);
below than 63 dB (DIN-B)
Platter: 309 mm aluminum die-cast
Tonearm Type: Statically balanced arm on TH System
Effective Length: 220 mm
Tracking Error: +3°35′; -0°43′
Overhang: 15 mm
Applicable Tracking Force: 0 – 3 grams
Applicable Cartridge Weight (including headshell): 13 – 21 grams
Operation Mode: Auto return
Power requirement: 120 V, 200 V AC 50/60 Hz
Dimensions (H x W x D): 130 x 460 x 368 mm (5-1/8″ x 18-1/8″ x 14-1/2″)
Weight: 6 kg (13,2 lbs)
