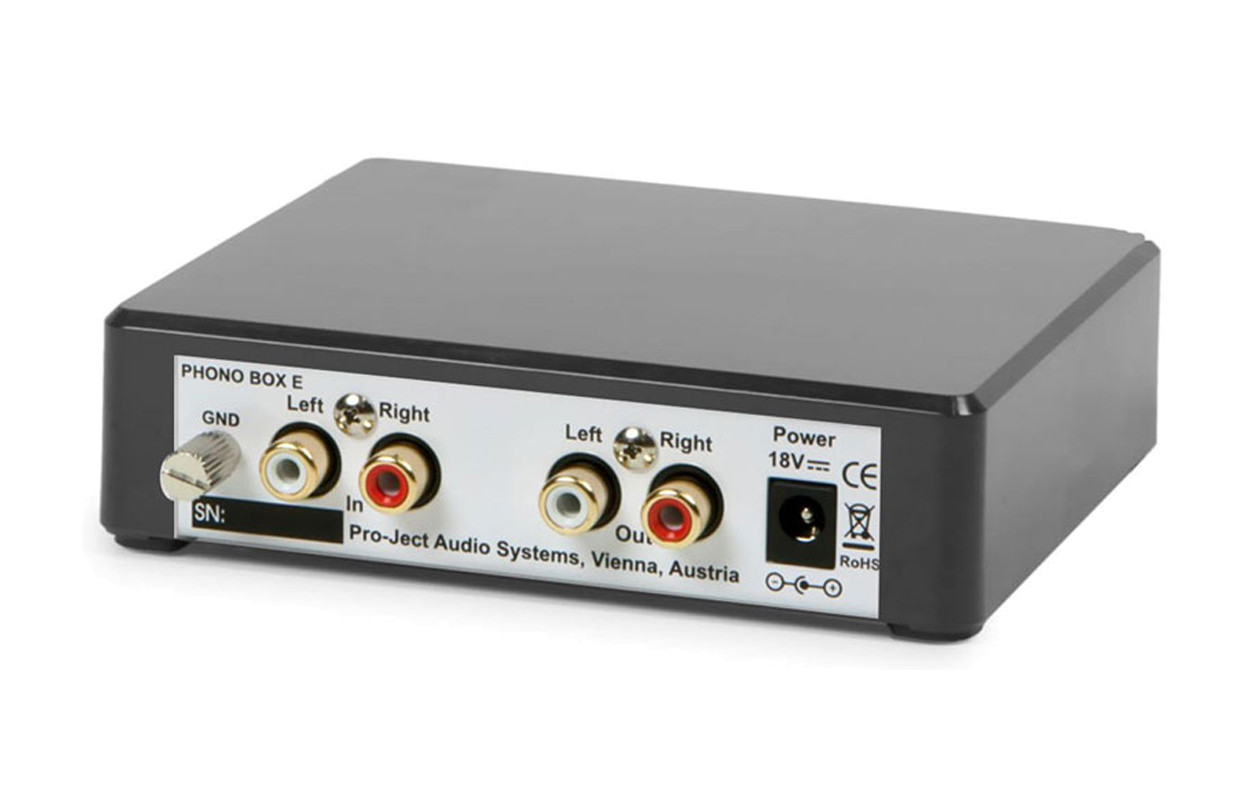

Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of it’s small casing, the Phono Box E can be placed near the turntable or hidden away. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.

Please note: Phono Box E is only available in gloss black in New Zealand

Features…
Amplification and RIAA equalisation for MM cartridges
Design principle inspired by Dr. Sykora
SMD circuitry
Special low noise components
Internal metal shielding
Small size allows installation close to record player
Gold plated RCA connection sockets
Outboard power supply included
Specifications…
Input Impedance: 47kohms
Input Capacitance: 120pF
Gain: 40dB
Output Voltage (typically): 500mV @ 1KhZ with 5mV input
Noise Floor: 88dB (A weighted)
THD: <0,04% RIAA Rqualisation Accuracy: 20Hz –20kHz (+0,5/ -,02dB) Input: 2 x RCA socket Output: 2 x RCA socket Outboard Power Supply: 18V/500mA DC; 220 – 240V, 50Hz Standby Power Consumption: < 1 watt Power Consumption: 20mA DC Dimension (W x H x D): 120 x 32 x 115 mm Weight: 250 g
